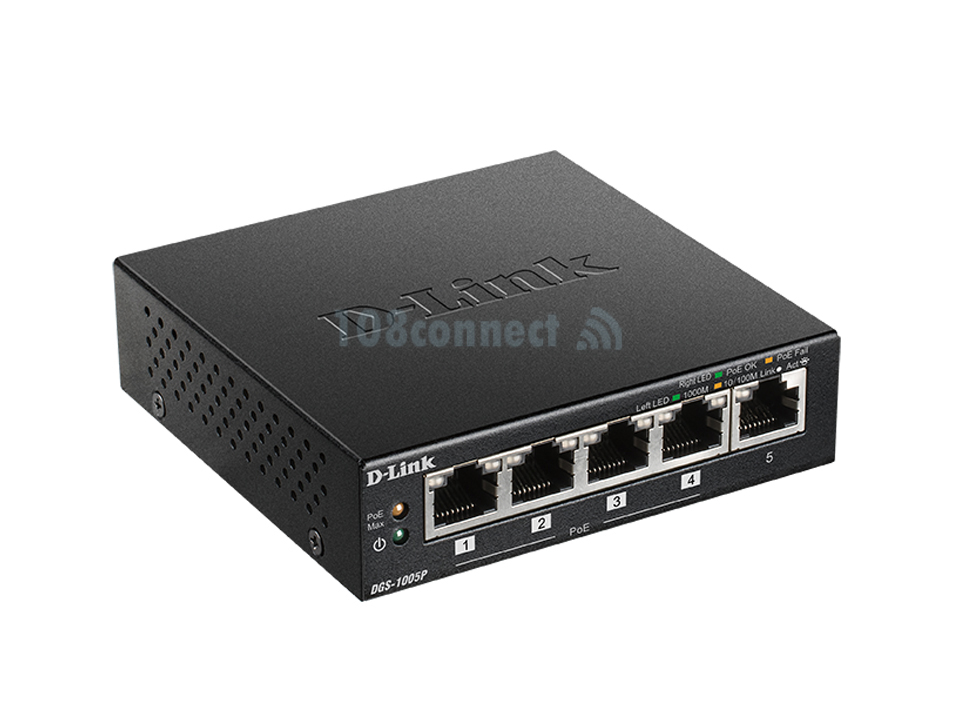

D-LINK DGS-1005P 5‑PORT DESKTOP GIGABIT PoE+ SWITCH

 เพิ่มเมื่อ: 2019-11-20 18:09:18.0
 แก้ไขล่าสุด: 2020-07-13 13:55:49.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
DGS-1005P 5-Port Gigabit Metal Desktop Switch with 4 PoE Ports DGS-1005P 5-Port Gigabit Metal Desktop Switch with 4 PoE Ports 10/100/1000 Mbps Gigabit Ethernet ports(สินค้ารับประกันตลอดอายุการใช้งาน)
1790.00 บาท

 D-LINK DGS-1005P

DGS-1005P 5-Port Gigabit Metal Desktop Switch with 4 PoE Ports DGS-1005P 5-Port Gigabit Metal Desktop Switch with 4 PoE Ports 10/100/1000 Mbps Gigabit Ethernet ports

- Five (5) 10/100/1000 Mbps Gigabit Ethernet ports

- IEEE 802.3af/at compliant PoE on ports 1 – 4

- 60W PoE power budget

- Fanless design provides noise free operation

- Metal desktop housing

- Reliability that businesses demand



Interfaces

- 5 10/100/1000BASE-T ports

Standards

- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

- IEEE 802.3ab 1000BASE-T Gigabit Ethernet

- IEEE 802.3x flow control

- IEEE 802.1p QoS

- ANSI/IEEE 802.3 NWay auto-negotiation

Media Interface Exchange

- Auto MDI/MDI-X adjustment on all ports

Switching Fabric

- 10 Gbps

Transmission Method

- Store-and-forward

Data Transfer Rates

Gigabit Ethernet

- 2000 Mbps (full-duplex)

Fast Ethernet

- 100 Mbps (half-duplex)

- 200 Mbps (full-duplex)

Packet Filtering / Forwarding Rates

- 7.44 Mpps

MAC Address Table

- 64 KB per device

PoE Standard

- IEEE 802.3af

- IEEE 802.3at

POE-Capable Ports

- Ports 1 to 4

Power Budget

- 60 W (30 W max. per PoE port)

LEDs

- Power

- Power / PoE Max (per unit)

- Power / Status (per port)

- Activity / Link and Speed (per port)

Weight

- 0.26 kg (9.17 oz)

Dimensions

- 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in)

DC Input

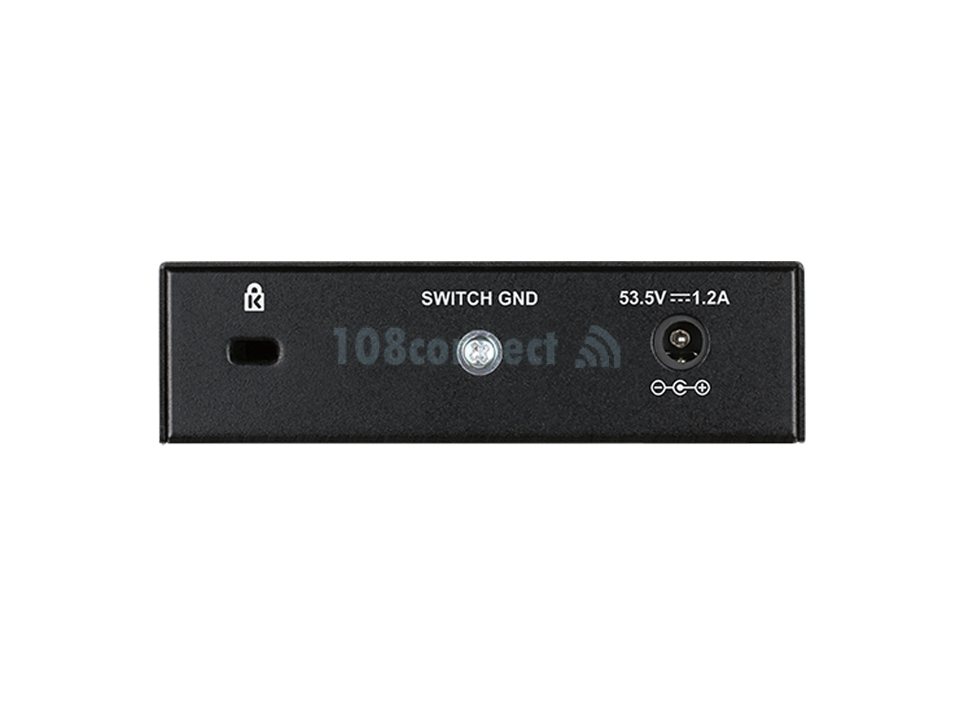

- External 53.5 V / 1.2 A power adapter

Power Consumption

- 64.5 W maximum (PoE on)

- 3.08 W maximum (PoE off)

- 0.54 W (standby)

Temperature

- Operating: 0 to 40 ˚C (32 to 104 ˚F)

- Storage: -10 to 70 ˚C (-40 to 158 ˚F)

Humidity

- Operating: 0% to 95% RH non-condensing

- Storage: 0% to 95% RH non-condensing

Safety

- cul

- CB

- LVD

- BSMI

EMI/EMC

- CE

- BSMI

- FCC

- VCCI

- RCM



Datasheet
