PLANET GSD-908HP 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch(120W)

 เพิ่มเมื่อ: 2015-10-05 16:16:58.0
 แก้ไขล่าสุด: 2019-04-29 14:26:29.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
GSD-908HP 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch(120W) (สินค้ารับประกัน 3 ปี)
6900.00 บาท

PLANET GSD-908HP

GSD-908HP 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch(120W)

- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

- 9-Port 10/100/1000Mbps Gigabit Ethernet Switch

- 8-Port supports 51V DC power to PoE Powered Device (Port 1 to port 8)

- Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE

- 120-watt PoE budget

- Up to 8 IEEE 802.3af devices powered

- Supports PoE Power up to 15.4 watts for each PoE port

- Up to 4 IEEE 802.3at devices powered

- Supports PoE Power up to 30 watts for each PoE port

- Remote power feeding up to 100m

- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X

- Features Store-and-Forward mode with wire-speed filtering and forwarding rates

- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

- Integrates address look-up engine, supporting 4K absolute MAC addresses

- 192 KB packet buffer

- 9K Jumbo frame supports at 1000Mbps duplex mode

- Made of metal, desktop size and wall-mount design

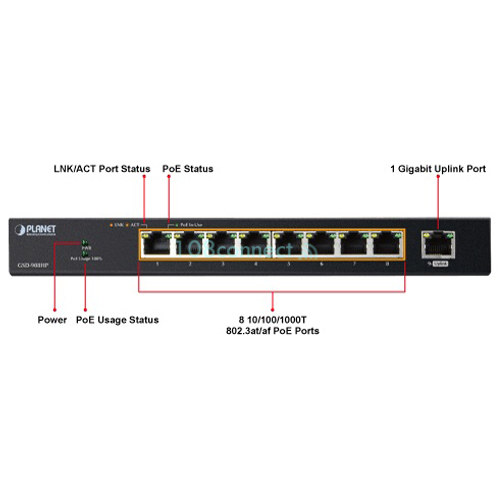

- LED indicators for system power, PoE usage 100%, per port PoE In-Use (Port 1 to port 8), per port Link / Act (10/100/1000Mbps, port 1 to port 9).

- 51V DC, 2.5A external power adapter



Centralized Power Distribution for Ethernet Networking
The GSD-908HP, a new member in the PLANET 802.3af / 802.3at PoE Unmanaged Gigabit Ethernet Switch family, is an 8-port 10/100/1000T 802.3at Power over Ethernet + 1-port 10/100/1000T Desktop Switch with a total of 120 watts of PoE budget, which is an ideal solution to fulfilling the demand of sufficient PoE power for network applications with Gigabit Ethernet speed transmission. The eight 802.3af / 802.3at PoE Gigabit ports provide PoE power injector function which is able to drive 8 IEEE 802.3af compliant powered devices or 4 IEEE 802.3at compliant powered devices. The GSD-908HP also provides a simple, cost-effective and non-blocking Gigabit wire-speed performance. It comes with a metal compact housing, suitable for desktop deployment in SOHO office or department network application.





Easy Cable Connection
With data and power over Ethernet from one unit, the GSD-908HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. Providing 8 PoE interfaces, the GSD-908HP is ideal for small businesses and workgroups requiring the PoE deployment of wireless access points, IP-based surveillance camera or IP phones in any places with ease, efficiency and cost-effectiveness.





SOHO / HOME-Use Gigabit Ethernet PoE Network Deployment
With its expanded home-use feature, the GSD-908HP 802.3at PoE+ Switch helps SOHO / home users to create an integrated data, video, and powered network. The wireless AP and PoE IP camera devices work perfectly with the GSD-908HP, which injects power through the Ethernet cables, thus helping SOHO / home users to build a cost-effective and reliable PoE networking environment easily.





Ideal Solution for Securing IP Surveillance Infrastructure
Particularly designed for the growing popular IP Surveillance applications, the GSD-908HP 802.3at PoE Switch is positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding. The GSD-908HP provides both 802.3af and 802.3at PoE functions along with 8 10/100/1000Base-T ports featuring 15.4-watt 802.3af and 30-watt 802.3at PoE in RJ-45 copper interfaces and 1 extra Gigabit TP interface supporting high-speed transmission of surveillance images and videos. The PoE Usage LED indicator on the left-hand side of the GSD-908HP front panel will light up when PoE Power Usage exceeds the maximum 120-watt PoE budget of the GSD-908HP.





IP Office Department / Workgroup PoE Switch
With the business office expansion, the additional telephones required could be installed at a much lesser cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. The GSD-908HP PoE Ethernet Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected GSD-908HP.

The Wireless AP group, PoE IP Phones and Analog Telephony Adapter work perfectly with the GSD-908HP which injects power through the Ethernet cables. With the GSD-908HP, IP Telephony deployment becomes more reliable and cost-effective, which helps enterprises save tremendous cost when upgrading from the traditional telephony system to IP Telephony communications infrastructure.







Specifications

Hardware Specifications
Network Connector 9-Port RJ-45 for 10/100/1000Base-T
PoE Inject Port 8-Port with 802.3af / 802.3at PoE injector function
LED Display System: Power (Green), PoE Usage 100% (Green)
Per PoE port: PoE (Green), port 1 to port 8
LNK/ACT (Orange), port 1 to port 9
Switch Architecture Store and forward
MAC Address Table 4K MAC address table with auto learning function
Data Buffer 192 KB
Switch Fabric 18Gbps
Switch Throughput 13.3Mpps@64Bytes
Flow Control Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
Power Requirements DC 51V, 2.5A max.
Power Consumption 120 watts / 409BTU
Dimensions (W x D x H) 235 x 103 x 27mm
Weight 628g
Power over Ethernet
PoE Standard IEEE 802.3af / 802.3at Power over Ethernet PSE
PoE Power Supply Type End-Span
PoE Power Output Per port 51V DC, 350mA. max. 15.4 watts
Per port 51V DC, 600mA. max. 30 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts
Max. Number of Class 2 PD 8
Max. Number of Class 3 PD 8
Max. Number of Class 4 PD 4
Standard Conformance
EMI Safety FCC Class A, CE
Standard Compliance IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3ab: Gigabit Ethernet
IEEE 802.3x: Flow Control
IEEE 802.3af: Power over Ethernet
IEEE 802.3at: High Power over Ethernet
Environment
Operating Environment 0 ~ 50 degrees C
Storage Environment -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity (non-condensing)
Storage Humidity 5 ~ 95%, relative humidity (non-condensing)



ติดต่อเรา



    krieng.nt@gmail.com

    www.108connect.co.th

   062-519-3997 , 02-458-2949

   @108connect

 สินค้าที่เกี่ยวข้อง

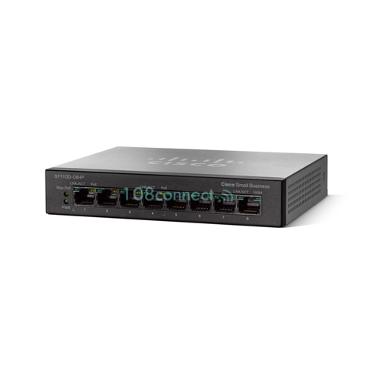

ZyXEL ES1100-16P 16-Port 10/100Mbps Fast Ethernet Unmanaged Switch, 8-Port PoE Max 130 Watt ZyXEL ES1100-8P 8-Port 10/100Mbps Fast Ethernet Unmanaged Switch, 4-Port PoE Max 64 Watt TP-LINK TL-SF1008P 8-Port 10/100Mbps Unmanaged PoE Switch, including 4PoE Port CISCO SF110D-08HP 8-Port 10/100 PoE Desktop Switch ZYXEL GS1005HP 5-port Gigabit Unmanged PoE Switch Metal Case Power budget 60Watt
